AUTOMATION SOLUTIONS FOR FLEXIBLE & EFFICIENT MACHINE LOADING

FX-Series
SMART LOAD

The FX series from rbc robotics includes cells that are modular, modern, very compact, and highly efficiency.

The FX SMART LOAD series is primarily designed for direct loading of machines or systems. The components are fed in and discharged again after processing or placed in a bin. Component detection is also possible with this variant. This makes the system highly flexible with set-up times that are close to zero.

The FX-LOAD series includes compact cells for lightweight components and manual component feeding as well as simple conveyor technology for the provision of workpieces. Buffer systems and compact feed systems for bulk goods in larger containers are also available.

2D or 2.5D camera technology are also used here for direct identification of the workpiece position to enable swift removal cycles.

The product range is rounded off by agile robots from ABB or KUKA and picking systems from EPSON.

Highlights

01

Modularised system platform of the FX Series™ with closed module cabins

02

Energy-efficient industrial robot for fast and precise part handling

03

Flexible component feeding through the use of 2D / 3D
Image recognition and possible AI optimised evaluation

04

Smart gripping technology for a wide range of components with minimum set-up times

05

Shopfloor-based, intuitive component programming and operation as well as the use of a high-performance cell control system

06

Flexible connection to the production line or directly to the processing machine and short commissioning time

Flexible component handling

thanks to industrial robots, up to payload class of 20 kg

Cycle time-neutral basket handling

through integrated basket stacking unit with 2 servo axes

Easy loading and unloading

thanks to the optimized design of the material lock in a closed floor pan

Cycle-neutral loading and unloading

of raw part stacks, finished part stacks and buffer stacks

Direct and flexible connection

to the machine tool or production line

Possible integration of further operations

(e.g., cleaning, laser marking)

Space-saving SPC drawer

and NO drawer through side or front integration

Synergy effects in the DVS TECHNOLOGY GROUP

Thanks to the close cooperation - also in product development - the robot systems can be easily combined with the machines of the DVS Technology Group.

Modules

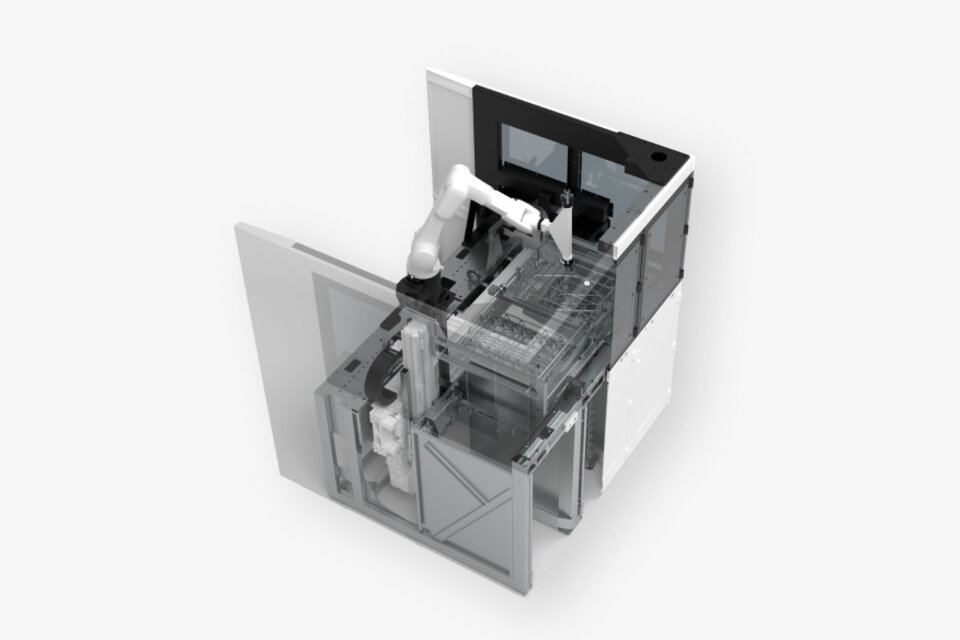

FX LOAD 600 The basket stacking cell

Containers, trays and lightweight wire baskets on floor rollers with dimensions of 400 × 600 mm.

FX LOAD – A The Anyfeeder cell

Manual feeding of bulk goods, lightweight components, vibration technology

FX LOAD – T The FeedLine cell

Manual placement of individual parts on the conveyor belt for lightweight components

FX LOAD – F The FeedLine

Large and heavy workpieces can also be fed on the conveyor belt Cameras at the conveyor’s end from above.

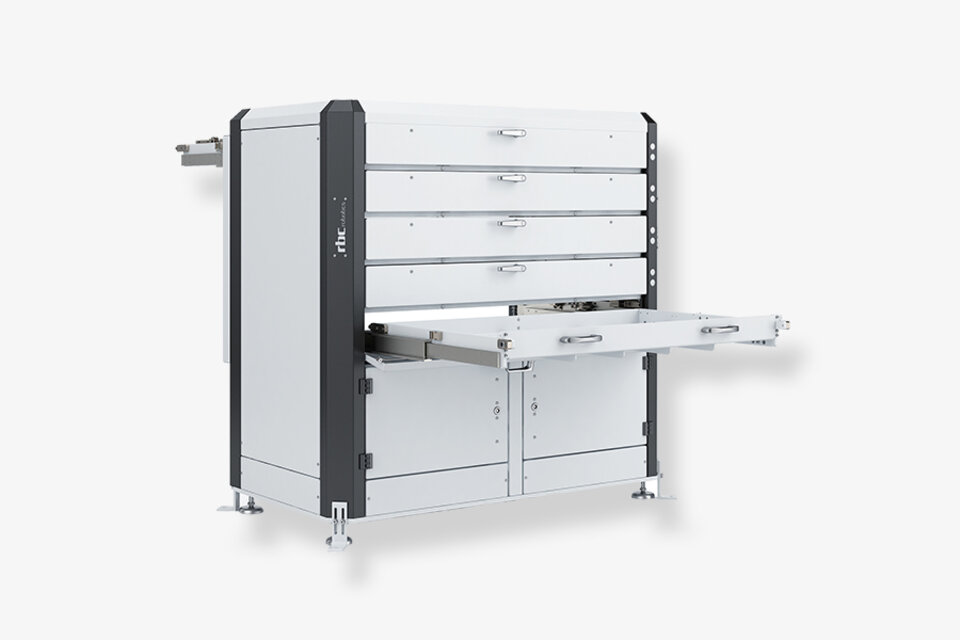

FX LOAD – S The workpiece buffer

Drawer system for manual or automated loading and unloading of robot cells as a workpiece buffer.

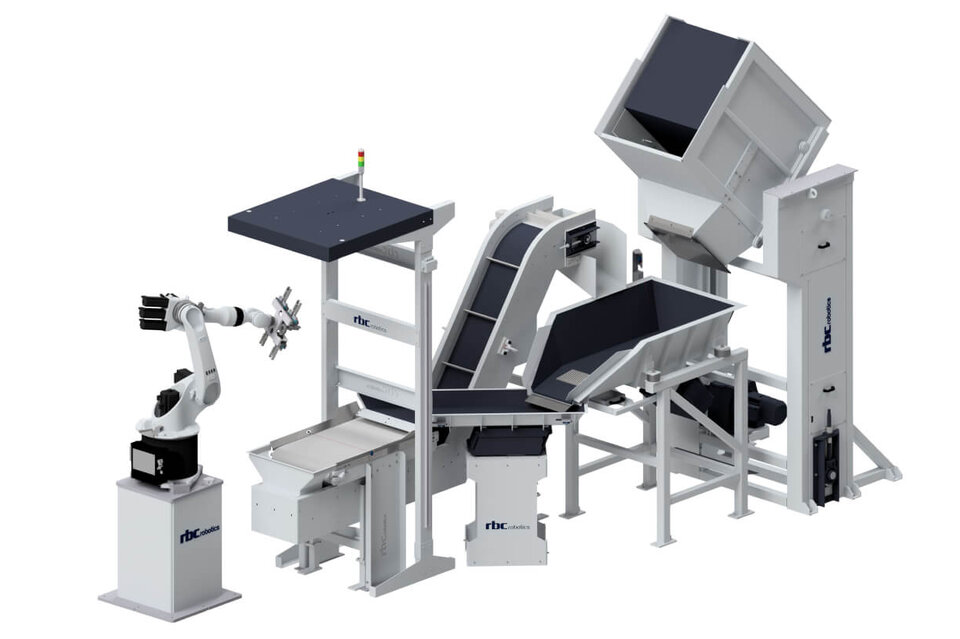

FX LOAD – M The MaxiFlex

Automatic box or container emptying on vibrating belt, including camera technology for mass production or assembly of bulk goods.

Vision-Technik by rbc robotics Component recognition

The positioning of components is critical for robot applications. In reality, the parameters are shifting constantly due to the different sizes, geometries, manufacturing tolerances, and surface characteristics. The robot system must be capable of autonomously adapting to these variables. Only then can the system be considered intelligent and reliable.

The technologies that we are presenting here make our FX series modules exactly the intelligent systems that you need for your requirements.

Technical Data FX LOAD 600*

Width x length x height	2000 x 2000 x 2100 mm	2650 x 2000 x 2100 mm	3300 x 2000 x 2100 mm
Number of chambers	3	4	5
Bin size	400 x 600 mm, basket height 80 to 150 mm, basket weight up to 50 kg	400 x 600 mm, basket height 80 to 150 mm, basket weight up to 50 kg	400 x 600 mm, basket height 80 to 150 mm, basket weight up to 50 kg
Model	Wire baskets, small load carriers (plastic), blisters	Wire baskets, small load carriers (plastic), blisters	Wire baskets, small load carriers (plastic), blisters
Max. stacking height	1100 mm	1100 mm	1100 mm
Sliding protection	integrated	integrated	integrated
Drive	2 NC axes for internal basket handling	2 NC axes for internal basket handling	2 NC axes for internal basket handling
Integrated automation	KUKA, ABB, FANUC, Epson, or loading portal	KUKA, ABB, FANUC, Epson, or loading portal	KUKA, ABB, FANUC, Epson, or loading portal
Floor pan	Sealed throughout, barrier-free basket stack loading	Sealed throughout, barrier-free basket stack loading	Sealed throughout, barrier-free basket stack loading
Cell control	SIEMENS S7 1500	SIEMENS S7 1500	SIEMENS S7 1500
Basket delivery	max. 2 spaces	max. 3 spaces	max. 4 spaces

*Different workpiece geometries require more individual machine designs. For this reason, the technical data given here serve as a guide, but may deviate from reality in individual cases.
